Choose B&D Compressor
B&D Compressor is a brand created out of passion for innovation and precision engineering. Our compressors combine reliability, energy efficiency, and modern technology, meeting the needs of both workshops and large industrial plants.
Each device undergoes rigorous quality testing and is built using top-class components, ensuring many years of trouble-free operation. Thanks to flexible configuration, you can easily adapt them to your system, and our European service provides full technical support.
B&D is the technology of the future – a reliable, efficient, and environmentally friendly source of compressed air.
We offer a 30-day return policy on all products. Items must be in original condition, unused, and the shipment must include a receipt or other proof of purchase. Refunds are processed within 5–7 business days of receiving the returned product.

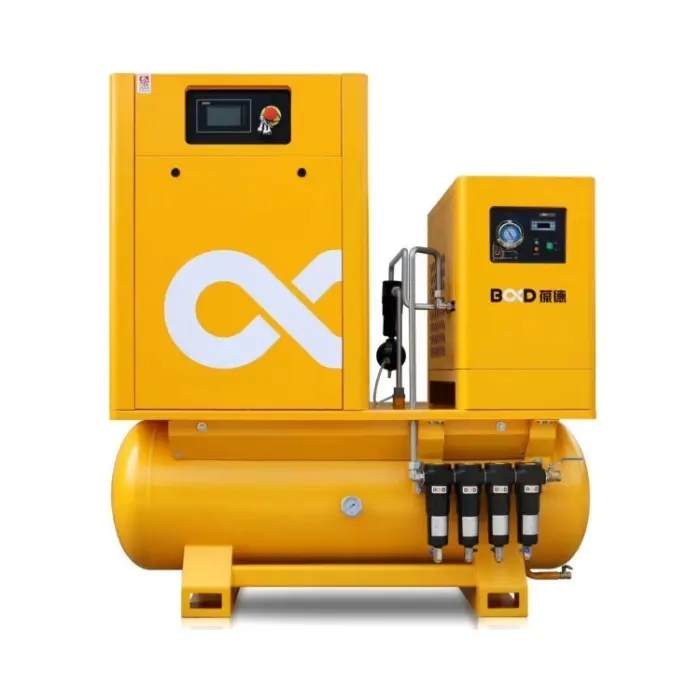

PM-TK series – reliability, economy and ready for action
B&D screw compressors of thePM-TK series are a complete, integrated solution for companies that value energy efficiency, easy installation and comfort of everyday work. Thanks to the PM VSD engine and the built-in control system, the device automatically adjusts its performance to the current demand for compressed air - without energy loss and unnecessary costs.
Integrated design, ready to go
PM-TK is a compressor that is delivered to the customer fully assembled, filled with oil and mounted on one pallet. Just connect it to the electric and pneumatic network to start working. A 300 l powder-coated tank, a refrigerant dryer and a system of six precise filters (up to 0.01 microns) guarantee air quality in line with the highest production requirements.
Everyday working comfort
Thanks tovibration reduction and flexible pipeline connections, the compressor operates quietly and stably - the noise level does not exceed 70 dB(A). Central condensate drainage ensures order in the workplace, and automatic fan control ensures optimal oil temperature regardless of the season, preventing emulsification.
Comfort and full control
✅B&Dcontrol panel – intuitive operation and full control of parameters,
✅B&D Cloudapplication – remote supervision of the device from anywhere,
✅Compact design – easy integration with existing infrastructure, saving space.
B&D PM-TK is the perfect choice for companies that are looking for:
✅ compressors ready for immediate operation,
✅ effective and automated technology,
✅ low operating costs and easy service,
✅ high air quality and quiet operation.
This is a modernplug & workthat combines functionality, economy and reliability - designed with the needs of today's industry in mind.
Why is it worth choosing the PM-TK series?
PM VSD engine
Stable pressure, lower energy consumption and quiet operation.
Inverter
Smooth performance control – full control and lower costs.
Advanced filtration system
Refrigeration dryer + 6 filters – air purified to 0.01 microns.
Remote Control
Full compressor control from anywhere – safety and convenience.
permanent magnet (PM) motor
Permanent Magnet (PM) engines are a key technological element in the BD series screw compressors manufactured by B&D (Baldor-Tech). PM engines are distinguished by exceptional efficiency and performance, which translates into excellent performance of these devices.
Key features and benefits of using PM motors in these compressors:
- High efficiency: PM motors have excellent efficiency, which means they can generate the required power with minimal electricity consumption. This feature makes TK series compressors economical in operation.
- Precise regulation: PM engines enable precise adjustment of rotational speed and torque, which is extremely important in compressors for adapting performance to changing operating conditions.
- ✅Noise and vibration reduction: PM motors are known for low noise and vibration levels, improving user comfort and minimizing environmental impact.
- Long-term durability: The lack of brushes in PM motors means they require less maintenance and are less prone to failure, which translates into extended compressor life.
- High reliability: PM engines are characterized by high reliability and resistance to damage, which contributes to the trouble-free operation of screw compressors.
Refrigeration dryer
The BD-11FPM-TK/16 compressor isequipped with an efficient refrigerant dryer. This is a device that dehumidifies the air by cooling it. As a result of this process, water condenses, removing moisture from the compressed air.
BD dehumidifier features:
- Low failure rate of the device.
- High efficiency condenser and exchanger.
- Highly reliable fan.
- Low electricity consumption.
- Control indicator.
- Quiet operation.
- Automatic condensate ejector.
A set of six precise filters
To obtain a high-class compressed air purity, the BD-11FPM-TK/16 high-pressure screw compressor uses a set of six precision filters - two filters before the dryer and 4 filters after the dryer.
Automatic condensate ejectors
The entire BD-11FPM-TK/16 screw compressor system is equipped with two automatic condensate ejectors:
- The first ejectordrains condensate from two filterslocated before the dryer,
- The second ejectordrains the condensate from the pressure tankandfrom the four output filters located after the dryer.
This solution makes the screw compressor virtually maintenance-free.
Control Panel
The B&D controller is an advanced system that manages screw compressor operation in real time, reacting to key parameters and protecting the device from unplanned downtime. It works directly with the inverter and a set of sensors (including temperature, pressure, and flow), ensuring optimal working conditions and complete system safety.
The clear display provides detailed information about:
✅ current alarms,
✅ temperature,
operating hours,
screw module temperature,
current working parameters (pressure, load, speed).
The controller allows you to adjust the minimum and maximum pressure, configure work schedules, and manage load. Thanks to the built-in communication module, it also enablesremote monitoring and management of the compressor via Wi-Fi, giving you quick access to service data and operating parameters from anywhere.
B&D Cloud
B&D Cloud is a modern remote monitoring and management platform for DHF series screw compressors, available exclusively through a dedicated mobile app. It provides real-time access to operating parameters, device history analysis, and energy report generation.
Benefits of using B&D Cloud:
✅ Full control via mobile app – monitor your compressor from anywhere, anytime.
✅ Access to key parameters – pressure, temperature, energy usage, and operating hours.
✅ Real-time alerts – immediate notifications of failures, alarms, or threshold violations.
✅Service planning – maintenance reminders and fault predictions to minimize downtime.
✅ Cost optimization – energy consumption analysis and reports to improve system efficiency.
5-year AirSure warranty
Your devices run non-stop – make sure they stay that way.
Full service protection, genuine parts, and reliable performance for years to come.
Especificaciones
| Maximum pressure (bar) | 8, 10, 16 |
| Engine power [kW] | 15 |
| Connection size | GZ 3/4" |
| Width (mm) | 1592 |
| Depth (mm) | 750 |
| Height (mm) | 1661 |
| Weight (kg) | 530 |
| Manufacturer | B&D |
| Inverter | Tak |
| Compressor type | Screw-type |
| Drive type | Bezpośredni z magnesami stałymi |
| Tank capacity [l] | 300 |
| Refrigeration dryer | Tak |
